Eaton rackmount UPS comparison

Eaton offers a full suite of rackmount UPS products for enterprise-class battery backup for network closets, IT server racks, mission critical applications and high density computing environments with power ratings ranging from 550 VA to 20 kW. Eaton rackmount models are available from 1U rackmount to 21U rackmount UPSs, with an option to expand your capacity with Eaton’s scalable UPS models.

Power ratings ranging from 550 VA to 60 kW

Eaton rackmount UPS models are available from 1U rackmount to 21U rackmount UPSs, with an option to expand your capacity with Eaton’s scalable UPS models.

Eaton 5P UPS

The Eaton 5P UPS provides premium protection for servers, network equipment and storage with the flexibility of a stand-alone unit while still allowing you to seamlessly manage your connected equipment, even in virtualized environments. The 5P features 1U and 2U rackmount and tower models, new models with lithium-ion batteries and select models can be wallmounted.

Eaton 9PX UPS

The Eaton 9PX is a double-conversion topology providing constant power conditioning and battery packs for extended runtime, now available in lithium-ion batteries. The 9PX tower/rackmount UPS is built for scalable deployment and features a graphical LCD interface.

Eaton 9PXM UPS

The Eaton 9PXM UPS is a scalable, modular rackmount UPS that combines the highest levels of reliability and the lowest total cost of ownership. Eaton’s 9PXM UPS enables you to build a mission critical power solution specific to your needs. Its patented design allows you to add capacity or redundancy, and increase runtime as your power needs change.

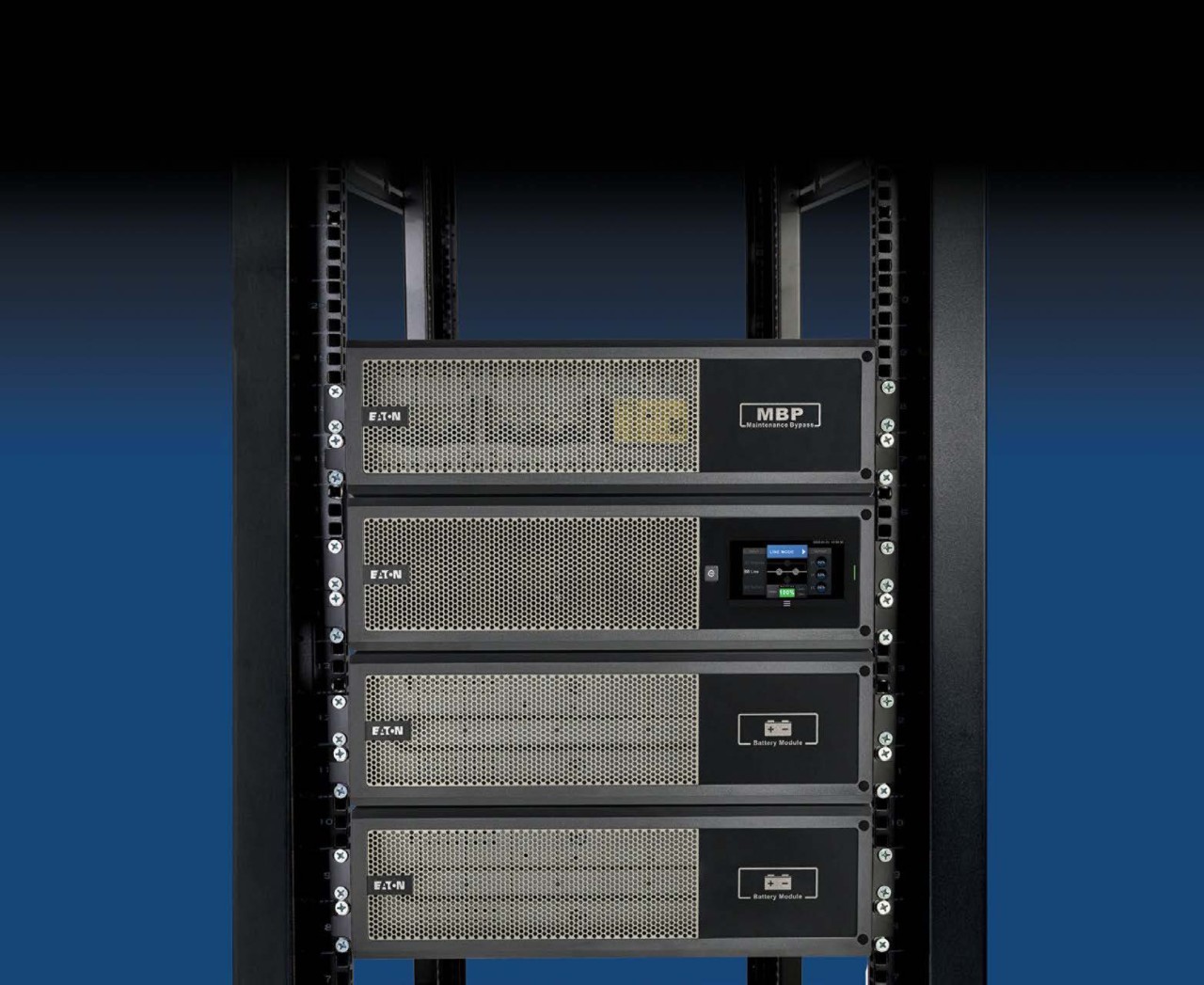

Eaton 93PX UPS

The 93PX double-conversion online UPS 208V (5-20kW) and 400V (15kW / 20kW) offers simple, reliable, and cost-effective power for edge and data center environments. With plug-and-play deployment, high-efficiency, 1.0 power factor, advanced cybersecurity, and scalable redundancy, it ensures continuous protection, surge resistance, and auto-restart—ideal for critical applications requiring high performance and operational resilience.

Eaton 5P G2 UPS

The Eaton 5P G2 UPS delivers intelligent power protection for modern IT environments, combining trusted reliability with advanced digital capabilities. Designed for edge computing, network closets, and distributed IT, the 5P G2 UPS offers energy-efficient performance, enhanced visibility, and seamless integration with Eaton’s cybersecurity- ready management platforms.

Eaton 5PX G2 UPS

The 5PX G2 UPS has power ratings ranging from 1 to 3 kVA, with low and high voltage options and offers up to four optional external battery modules for extra runtime. The 5PX G2 UPS has reduced depth to conserve space allowing for high density wall mount rack options, with the 2 to 3kVA models.

9PX UPS 5kVA-6kVA with LCD screen, in rack. Front view

Eaton 9PX G2 UPS

The 9PX G2 UPS builds on the highly successful 9PX platform, this next-generation online double-conversion UPS has many enhancements such as enhanced battery management, best-in-class efficiency, more power in less (RU) space, and market-leading cybersecurity. The 9PX G2 UPS is simple to configure and easy to deploy, meeting the demands of a wide-range of IT applications from network closets to enterprise data centers.

Tripp Lite series cloud-connected UPS

The Tripp Lite series 2U rack-mount/tower cloud-connected line-interactive UPS is engineered to deliver robust and reliable power protection for your essential equipment. Available in 750VA, 1000VA and 1500VA models, this versatile UPS can be conveniently mounted in a rack, used as a tower or mounted on a wall. It’s ideal for a variety of environments, from data centers to network closets.

Eaton's 9PX UPS is now available in lithium-ion batteries!

Eaton's 9PX double-conversion lithium-ion UPS offers a set-it-and forget-it deployment with power rating from 1.5 to 11 kVA in rackmount and tower form.

Learn more about our 9PX model offerings

Eaton rackmount UPS side-by-side comparison

Model	5P	5P lithium-ion	5P G2	5P G2 lithium-ion	5PX G2	9PX	9PX lithium-ion	9PXM	Cloud-Connected
Power range	550 to 3000 VA	1500 & 1550 VA	1500 to 3000 VA	550 to 1550 VA	1000 to 3000 VA	700 VA to 11 kVA	1.5 to 11 kVA	4 to 20 kVA	750 to 1500 VA
Phase	Single	Single	Single	Single	Single	Single, Split	Single	Split	Single
Voltage	120V & 208-240V	120V & 208-240V	120V	120V	120V, 208-230V	120V, 208V & 120/208V	120V, 208V	208-240V	120V
Electrical input	Plug & play	Plug & play	Plug & play	Plug & play	Plug & play	Plug & play, hardwired	Plug & play, hardwired	Hardwired	Plug & Play
Rackmount height	1U & 2U	1U	2U	1U & 2U	2U & 3U	2U to 7U	2U to 4U	14U, 21U	1U & 2U
Rackmount depth (in.)	14.3 to 25.5	21.8	17.6 to 23.7	14.2	17.6 to 23.7	17.7 to 32.6	17.7 to 28.5	30	8.26 to 15.35
Outlet metering
Outlet control									Outlet group control
Extended battery modules									1500VA models only
Scalable power
N+X redundancy
Generator compatible
Sine wave output on battery
ABM technology (up to 50% longer battery service life)		Advanced BMS		ABM+		(ABM+ 9PX G2)	Advanced BMS
Hot Sync paralleling (capacity and redundancy)
Battery type	Lead acid	Lithium-ion	Lead acid	Lithium-ion	Lead acid	Lead acid	Lithium-ion	Lead acid	Lead acid & Lithium-ion
TAA compliant
LCD interface	Graphical	Graphical	Graphical	Graphical	Graphical	Graphical	Graphical	Graphical	Graphical
Network card slot
RS-232 port
USB port
RPO/ROO
High efficiency mode
Output configurable (CTO)
Power factor	Up to 1.0	0.71 to 0.76	Up to 1.0	Up to 1.0	1.0	0.9 to 1.0	0.9 to 1.0	0.9	0.63 to 0.7
Frequency	50/60 Hz	50/60 Hz	50/60 Hz	50/60 Hz	50/60 Hz	50/60 Hz	50/60 Hz	60 Hz	50/60 Hz
External bypass option
Cloud remote monitoring
Warranty (including batteries)	3 years	5 years	3 years	5 years	3 years	3 years	5 years	2 years	3 years

Helpful hints

Where is the best place for your equipment? Rackmount UPSs slide in alongside your IT equipment off the floor, keeping it all away from water leaks and spills.
Mounting hardware included? It is important to ensure that the proper 2- or 4-post mounting hardware is included with the UPS battery backup or you’ll need to purchase it separately.
Where to install the UPS in the rack? When it comes to installing the UPS, it’s almost always the heaviest component in your rack so you’ll want to position it at the bottom especially if you have external battery packs.
